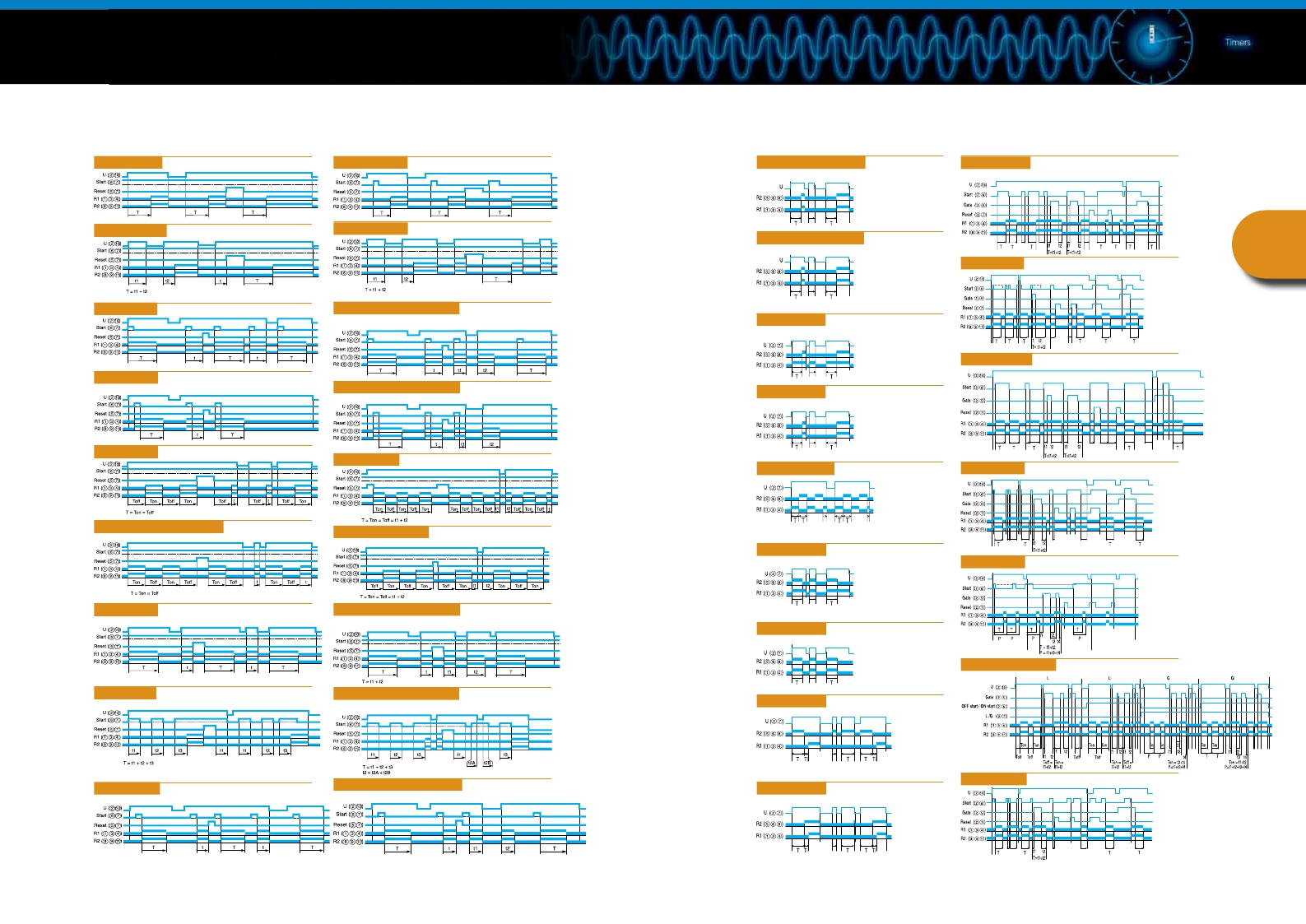

FUNCTION DIAGRAMS
815E DEDICATED FUNCTIONS
TMR48 DEDICATED FUNCTIONS
? A2 FUNCTION: Delay on energisation
? A2C FUNCTION: Delay on energisation
? TMR48 A A FUNCTION: Delay on
? AC FUNCTION: Timing after closing and
U : SUPPLY
R : OUTPUT RELAY
or load
T : TIMING
∞ : INfiNITY
C (Y1) : COMMAND
Start : START TIMING
Reset : RESET TO ZERO
? AM FUNCTION: Delay on energisation
? AMT FUNCTION: Delay on energisation
U : SUPPLY
R : OUTPUT RELAY
or load
T : TIMING
∞ : INfiNITY
C (Y1) : COMMAND
energisation
? TMR48 U A FUNCTION: On-delay
opening of control contact
TIMERS
? B FUNCTION: Timing on impulse (one shot)
LATCHING DURING THE TIME DELAY
LATCHING DURING THE TIME DELAY
? B FUNCTION: Timing on impulse (one shot)
? C FUNCTION: Timing after impulse
? B FUNCTION WITH LATCHING: Timing on impulse
(one shot)
? C FUNCTION WITH LATCHING: Timing after impulse
? A1 FUNCTION: Delay on energisation
? A2 FUNCTION: Delay on energisation
? BW FUNCTION: Pulse output (adjustable)
? D FUNCTION: Flip-flop
? DI FUNCTION WITH LATCHING: Flip-flop
? DI FUNCTION: Flip-flop
? D PAUSE FUNCTION: Flip-flop
? D-DI FUNCTION: Symmetrical flashing
? C FUNCTION: Off-delay
? H1 FUNCTION: Timing on energisation
? G FUNCTION: Cyclical function
? H FUNCTION: Timing on energisation
? H FUNCTION WITH LATCHING: Timing on
energisation
? H2 FUNCTION: Timing on energisation
? L/LIG/GI FUNCTION: Cyclical flashing timers
? T FUNCTION: Timing on energisation
? T FUNCTION WITH LATCHING: Timing on
energisation
? Q1 FUNCTION: Star-delta "starting"
? W FUNCTION: Off-delay
? W FUNCTION WITH LATCHING: Off-delay timer
? Q2 FUNCTION: "Star-delta 2" starting
? W FUNCTION: Off-delay
22
I www.crouzet.com
l Panorama Crouzet Control
23
